YG-1

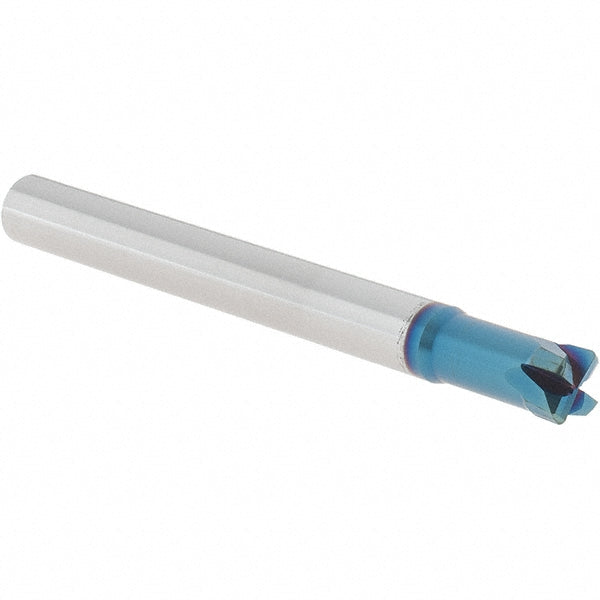

4-Flute Solid Carbide Single End Mill - YG-1 G859060
MFR# G859060Series G859
$94.73List $119.37
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes4
MaterialSolid Carbide
Description
The YG-1 G859060 is a 4-flute Solid Carbide (Micrograin) single end mill. Suited for steel, hard material. Series G859.
Specifications
CentercuttingNo
ChipbreakerNo
Cutting directionRight Hand
End mill materialSolid Carbide
End typeSingle
Extended reachYes
Flute directionRight Hand
Length of cut (mm)2.50
Length typeStub
Material gradeMicrograin
Mill diameter (mm)6.00
Mill diameter tolerance0.0000 to -0.0008 in
Neck diameter (mm)5.40
Number of flutes4
Primary workpiece materialSteel; Hard Material
Reach length (mm)12.00
Shank diameter0.2362
Shank diameter toleranceh6
Shank typeStraight-Cylindrical
Variable helixNo
Variable indexNo
