YG-1

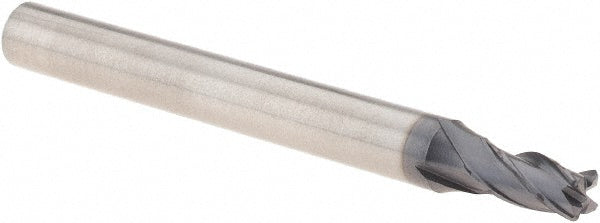

3/16" 4-Flute Solid Carbide Corner Radius End Mill - YG-1 GM639903

MFR# GM639903Series GM

$44.10List $56.56 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter3/16

Flutes4

MaterialSolid Carbide

Description

The YG-1 GM639903 is a 3/16 4-flute Solid Carbide (Micrograin) corner radius end mill. Suited for steel. 3/8 length of cut, 2-1/2 overall length. Series GM.

Specifications

CentercuttingNo

ChipbreakerNo

Coolant throughNo

Corner radius0.0200

Corner radius tolerance+0.0010 to -0.0010 in

Cutting directionRight Hand

End mill materialSolid Carbide

End typeCorner Radius

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

For use withToolholders

Helix styleMedium

Length of cut in3/8

Length typeStub

Manufacturers catalog numberGM639903

Material applicationSteel

Material gradeMicrograin

Material removal typeRoughing & Finishing

Mill diameter in3/16

Mill diameter tolerance+0.0000/-0.0012 in

Number of flutes4

Overall length in2-1/2

PitchNormal

Primary workpiece materialSteel

Reach length in3/8

Secondary workpiece materialStainless Steel; Cast Iron

Shank diameter in1/4

Shank diameter tolerance+0.0000/-0.0003 in

Shank typeStraight-Cylindrical

Single or double endSingle

Variable helixNo

Variable indexNo
