Supermill

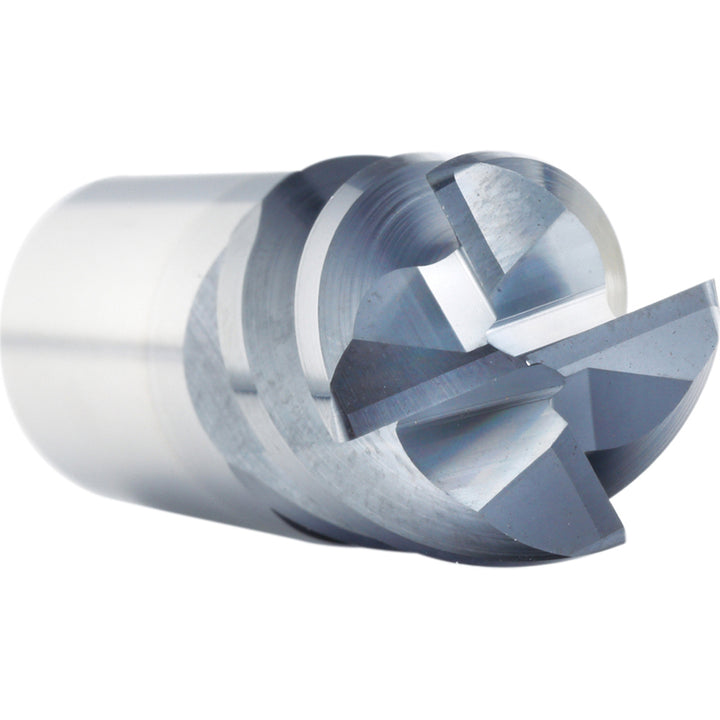

3/16" 4-Flute Solid Carbide Corner Radius End Mill, AlTiN - Supermill 5253666

MFR# 5253666Cat# XP187SRASeries XP-NB

$30.01List $38.50 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter3/16

Flutes4

MaterialSolid Carbide

CoatingAlTiN

Description

The Supermill 5253666 is a 3/16 4-flute Solid Carbide (Micrograin) corner radius end mill with a AlTiN finish for longer tool life. Suited for superalloys & titanium, hard material. 3/8 length of cut, 1-1/2 overall length. Series XP-NB.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishAlTiN

Coolant throughNo

Corner radius0.0100

Cutting directionRight Hand

End mill materialSolid Carbide

End typeCorner Radius

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

For use withToolholders

Helix styleHigh

Length of cut in3/8

Length typeStandard

Manufacturers catalog numberXP187SRA

Material applicationSuperalloys & Titanium; Hard Material

Material gradeMicrograin

Material removal typeRoughing & Finishing

Mill diameter in3/16

Number of flutes4

Overall length in1-1/2

PitchVariable

Primary workpiece materialSuperalloys & Titanium; Hard Material

Reach length in3/8

Shank diameter in3/16

Shank typeStraight-Cylindrical

Single or double endSingle

Variable helixNo

Variable indexYes
