3/16" 4-Flute Solid Carbide Square End Mill, TiAlN - OSG 414-187511

OSG

3/16" 4-Flute Solid Carbide Square End Mill, TiAlN - OSG 414-187511

MFR# 414-187511Series 414

$18.94List $23.87 Save 20%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter3/16
Flutes4
MaterialSolid Carbide
CoatingTiAlN

Description

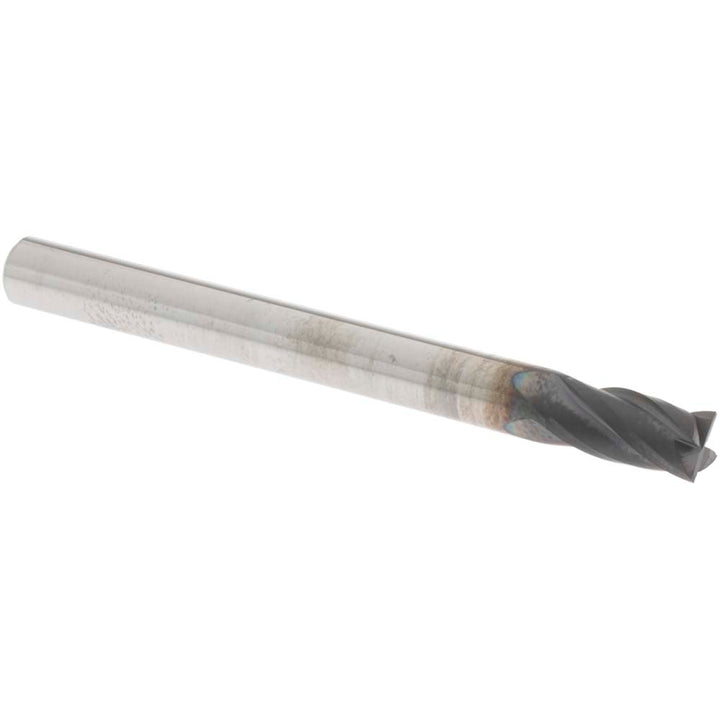

The OSG 414-187511 is a 3/16 4-flute Solid Carbide (Micrograin) square end mill. 3/8 length of cut, 2 overall length. Series 414.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishTiAlN
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in3/8
Length of cut range0.3000 - 0.5000
Length typeStub
Material gradeMicrograin
Mill diameter in3/16
Mill diameter tolerance+0.000/-0.001 in
Number of flutes4
Overall length in2
Shank diameter in3/16
Shank diameter tolerance+0.00000/-0.0005 in
Variable helixNo
Variable indexNo
