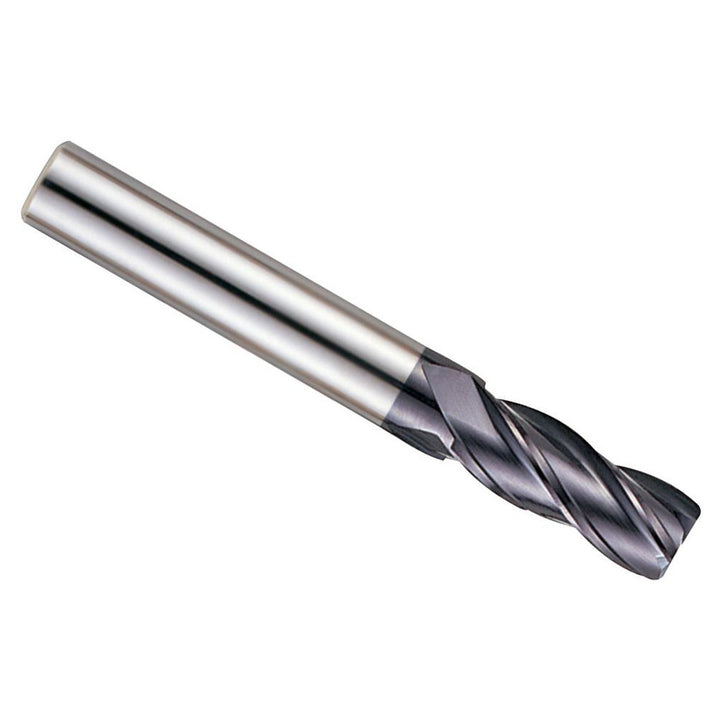

1/4" 4-Flute Solid Carbide Corner Radius End Mill - YG-1 GM649905

YG-1

1/4" 4-Flute Solid Carbide Corner Radius End Mill - YG-1 GM649905

MFR# GM649905Series GM649

$44.08List $56.53 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter1/4
Flutes4
MaterialSolid Carbide
CoatingY

Description

The YG-1 GM649905 is a 1/4 4-flute Solid Carbide (MG) corner radius end mill with a Y finish for longer tool life. Suited for steel. 3/4 length of cut, 3 overall length. Series GM649.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishY
Coolant throughNo
Corner radius0.0200
Corner radius tolerance-0.0010 to 0.0010 in
Cutting directionRight Hand
End mill materialSolid Carbide
End typeCorner Radius
Extended reachNo
Flute directionRight Hand
Flute typeHelical
For use withEnd Mill Holders
Helix styleMedium
Length of cut in3/4
Length typeStandard
Material applicationSteel; Stainless Steel; Cast Iron
Material gradeMG
Material removal typeFinishing
Mill diameter in1/4
Mill diameter tolerance0.0000 to 0.0012 in
Number of flutes4
Overall length in3
PitchNormal
Primary workpiece materialSteel
Secondary workpiece materialStainless Steel; Cast Iron
Shank diameter in1/4
Shank diameter tolerance0.0000 to 0.0003 in
Shank typeStraight-Cylindrical
Single or double endSingle
Variable helixNo
Variable indexNo
