YG-1

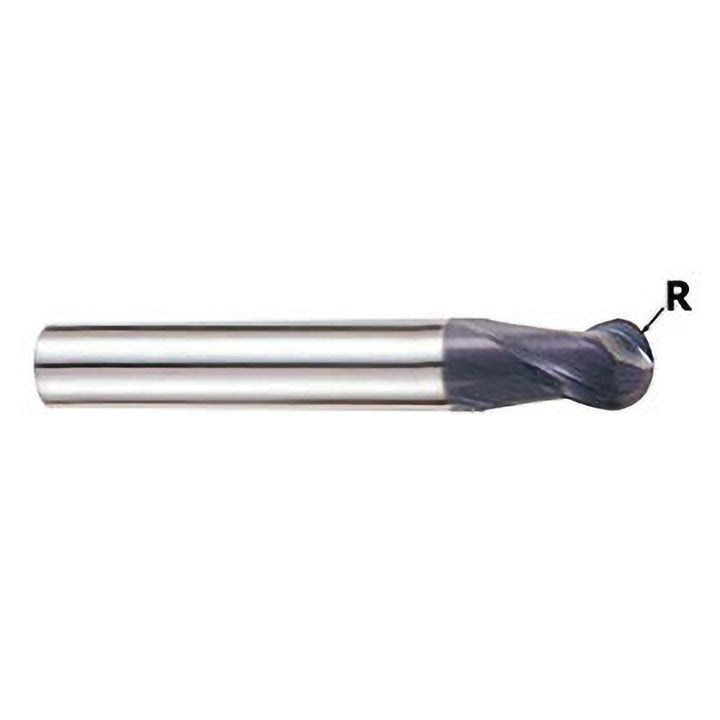

2-Flute Solid Carbide Ball End Mill, TiAlN - YG-1 GM876080
MFR# GM876080Series GM876
$89.08List $112.26
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
MaterialSolid Carbide
CoatingTiAlN
Description
The YG-1 GM876080 is a 2-flute Solid Carbide (Micrograin) ball end mill with a TiAlN finish for longer tool life. Suited for steel. Series GM876.
Specifications
ChipbreakerNo
Coating finishTiAlN
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeHelical
Helix angle30
Helix styleMedium
Length of cut (mm)9.00mm
Length typeShort
Manufacturers catalog numberGM876080
Material gradeMicrograin
Material removal typeRoughing & Finishing
Mill diameter (mm)8.00mm
Mill diameter tolerance+0.00/-0.03 mm
Neck length (mm)0.00
Nose radius (mm)4.00
Number of flutes2
Overall length (mm)58.00mm
Primary workpiece materialSteel
Reach length (mm)9.00
Secondary workpiece materialCast Iron
Shank diameter (mm)8.00mm
Shank diameter toleranceh6
Shank typeStraight-Cylindrical
Single or double endSingle
System of measurementMetric
Variable helixNo
Variable indexNo
