YG-1

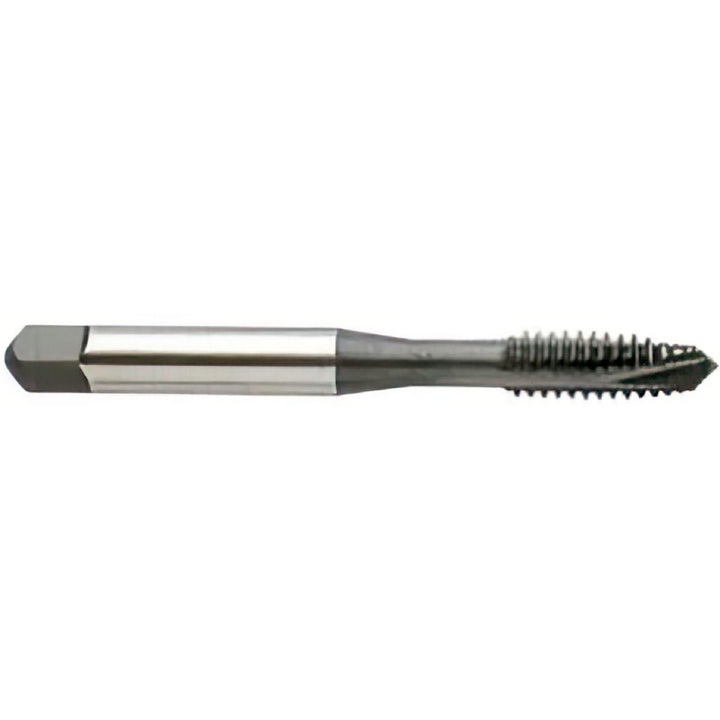

3/8-24 UNF HSS Spiral Point Tap, Hardslick - YG-1 L1503
MFR# L1503Series L1
$31.65List $40.59
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size3/8-24
CoatingHardslick
Description
The YG-1 L1503 is a 3/8-24 UNF HSS Spiral Point tap with a Hardslick finish. 3 flutes.
Specifications
ApplicationThrough-Hole Threading
ChamferPlug
Class of fit3B
Coating finishHardslick
Coolant throughNo
Interrupted threadNo
MaterialHSS
Material applicationCarbon Steel; Stainless Steel; Chilled Cast Iron; Nodular Cast Iron; Ductile Iron; Aluminum Cast Alloy
Number of flutes3
Overall length in2-15/16
OversizeNo
Shank diameter0.3810
StyleSpiral Point
Threads per inch24
Thread directionRight Hand
Thread length in1-1/4
Thread limitH3
Thread pitch0.0417
Thread size in3/8-24
Thread standardUNF
