Allied Machine and Engineering

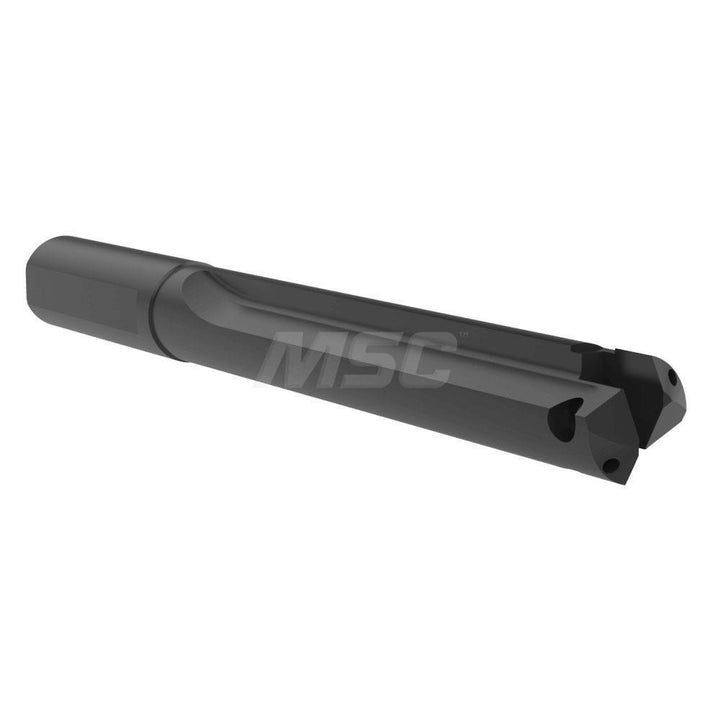

Indexable Drilling - Allied Machine and Engineering 20411-1000
MFR# 20411-1000Series HP-A
$245.35List $291.06
Save 15%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Allied Machine and Engineering 20411-1000 indexable drilling. Suited for universal. Series HP-A.
Specifications
Body length in3-17/32
Coolant entry style code0-Without Coolant
Coolant throughNo
Flute length in3
Flute typeStraight
Length typeShort
Maximum drill depth in3
Maximum drill diameter in1-3/8
Minimum drill diameter in31/32
Overall length in6-1/2
Primary workpiece materialUniversal
Shank diameter in1
Shank length in3-1/2
Shank typeFlatted
Spade drill lengthShort
Tool materialSteel
Tool performanceHigh Performance
