Allied Machine and Engineering

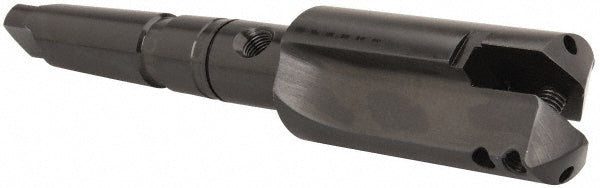

Indexable Drilling - Allied Machine and Engineering 21641-0004
MFR# 21641-0004Series HP-D
$492.50List $595.41
Save 17%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Allied Machine and Engineering 21641-0004 indexable drilling. Suited for universal. Series HP-D.
Specifications
Body length in7-7/16
Coolant entry style code2-Radial Entry
Coolant hole thread size1/4
Coolant hole thread typeNPT
Coolant throughYes
Flute length in4-1/2
Flute typeStraight
Length typeShort
Maximum drill depth in4-1/2
Maximum drill diameter in2-7/8
Minimum drill diameter in2
Overall length in11-1/16
Primary workpiece materialUniversal
Rotary coolant adapter compatibility2T-4SR
Shank diameter1.2310
Shank length in4-7/8
Shank taper size4MT
Shank typeTaper
Spade drill lengthShort
Tool materialSteel
Tool performanceHigh Performance
