Allied Machine and Engineering

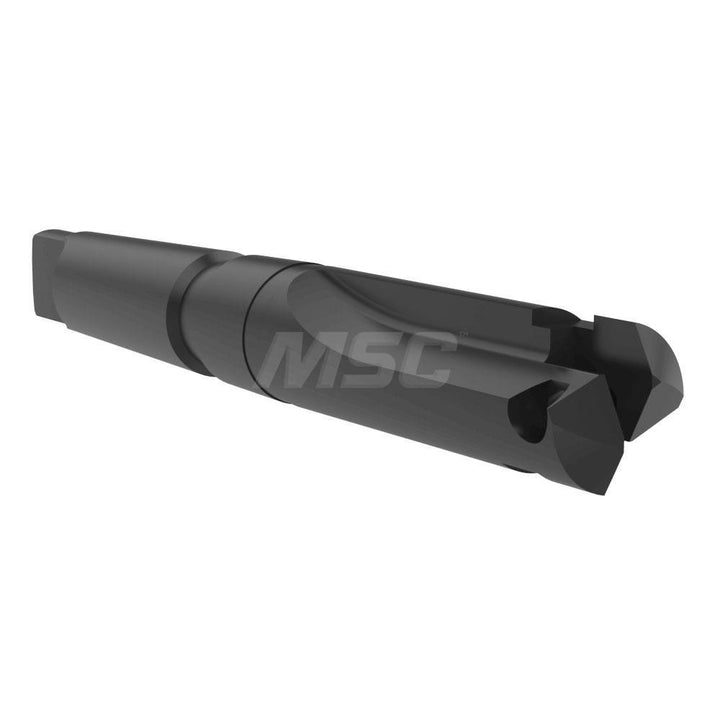

Indexable Drilling - Allied Machine and Engineering 21681-0005
MFR# 21681-0005Series HP-H
$1,087.93List $1,315.26
Save 17%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Allied Machine and Engineering 21681-0005 indexable drilling. Suited for universal. Series HP-H.
Specifications
Body length in11-1/8
Coolant entry style code2-Radial Entry
Coolant hole thread size1/2
Coolant hole thread typeNPT
Coolant throughYes
Flute length in7
Flute typeStraight
Length typeShort
Maximum drill depth in7
Maximum drill diameter in8-1/2
Minimum drill diameter in4
Overall length in15-7/16
Primary workpiece materialUniversal
Rotary coolant adapter compatibility2T-6SR
Shank diameter1.7480
Shank length in6-1/8
Shank taper size5MT
Shank typeTaper
Spade drill lengthShort
Tool materialSteel
Tool performanceHigh Performance
