Allied Machine and Engineering

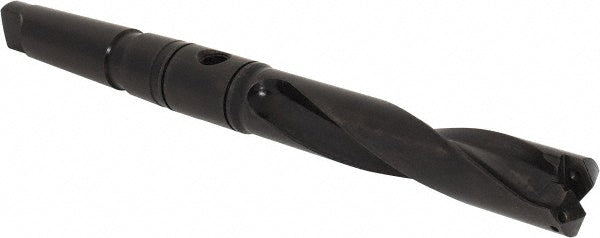

Indexable Drilling - Allied Machine and Engineering 23025H-004I
MFR# 23025H-004ISeries T-A 2.5
$322.64List $396.56
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Allied Machine and Engineering 23025H-004I indexable drilling. Suited for universal. Series T-A 2.5.
Specifications
Body length in6-1/2
Coolant entry style code2-Radial Entry
Coolant hole thread size1/8
Coolant hole thread typeNPT
Coolant throughYes
Flute length in5-3/8
Flute typeHelical
Length typeIntermediate
Maximum drill depth in5-3/8
Maximum drill diameter in1-3/8
Minimum drill diameter in1-3/16
Overall length in13-1/16
Primary workpiece materialUniversal
Rotary coolant adapter compatibility2T-4SR
Shank diameter1.2310
Shank length in4-7/8
Shank taper size4MT
Shank typeTaper
Spade drill lengthIntermediate
Tool materialSteel
Tool performanceGeneral Purpose
