Allied Machine and Engineering

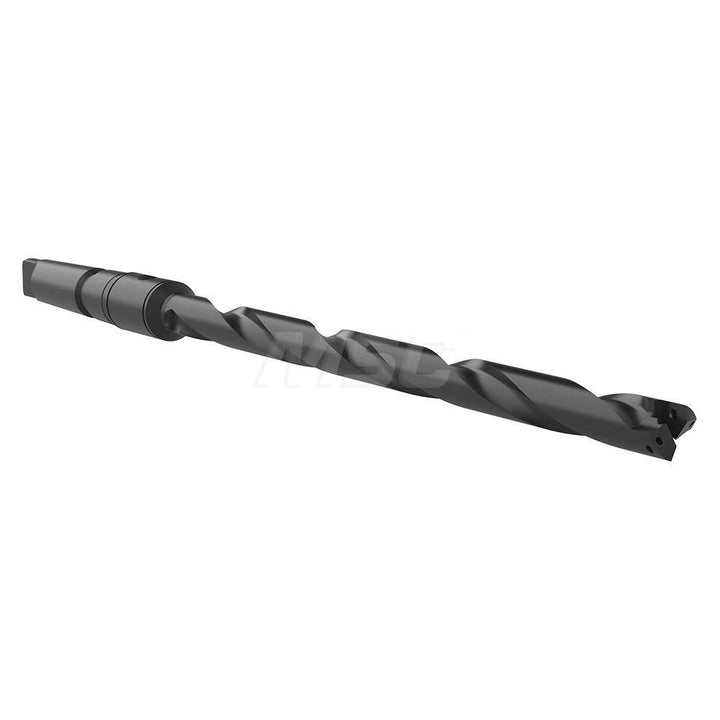

Indexable Drilling - Allied Machine and Engineering 25010H-003I
MFR# 25010H-003ISeries T-A 1
$330.17List $398.75
Save 17%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Allied Machine and Engineering 25010H-003I indexable drilling. Suited for universal. Series T-A 1.
Specifications
Body length in13-39/64
Coolant entry style code2-Radial Entry
Coolant hole thread size1/8
Coolant hole thread typeNPT
Coolant throughYes
Flute length in10-3/4
Flute typeHelical
Length typeExtended
Maximum drill depth in10-3/4
Maximum drill diameter in15/16
Minimum drill diameter in45/64
Overall length in17-5/32
Primary workpiece materialUniversal
Rotary coolant adapter compatibility2T-3SR
Shank diameter in15/16
Shank length in3-15/16
Shank taper size3MT
Shank typeTaper
Spade drill lengthExtended
Tool materialSteel
Tool performanceGeneral Purpose
