Allied Machine and Engineering

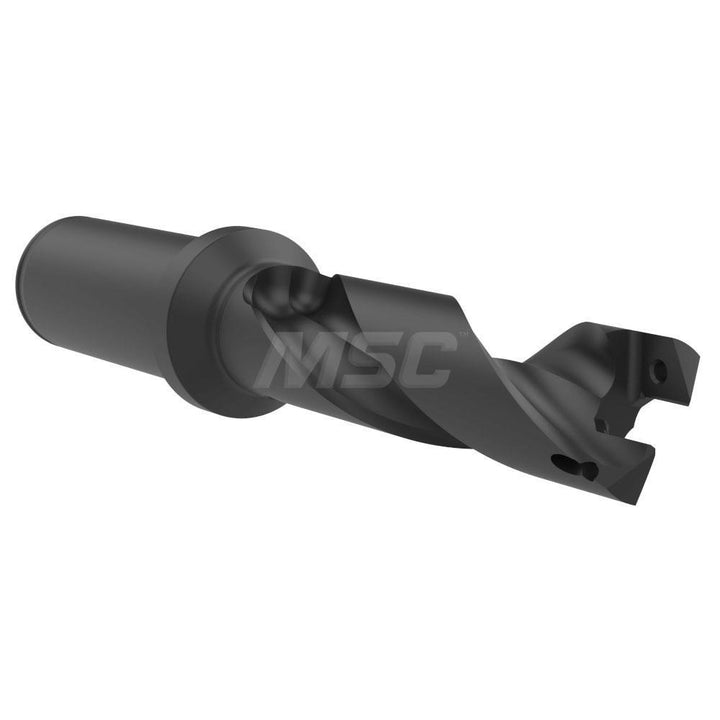

Indexable Drilling - Allied Machine and Engineering 60322H-100C
MFR# 60322H-100CSeries GEN3SYS 22
$353.08List $435.18
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Allied Machine and Engineering 60322H-100C indexable drilling. Suited for universal. Series GEN3SYS 22.
Specifications
Body length in4-9/64
Coolant entry style code1-Axial Concentric Entry
Coolant hole thread size1/8
Coolant hole thread typeNPT
Coolant throughYes
Drill depth by diameter ratio3xD
Flute length in2-53/64
Flute typeHelical
Length typeStandard
Maximum drill depth in2-53/64
Maximum drill diameter0.9448
Minimum drill diameter0.8661
Overall length in6-27/64
Primary workpiece materialUniversal
Shank diameter in1
Shank length in2-9/32
Shank typeCylindrical
Spade drill lengthStandard
Tool materialSteel
Tool performanceGeneral Purpose
