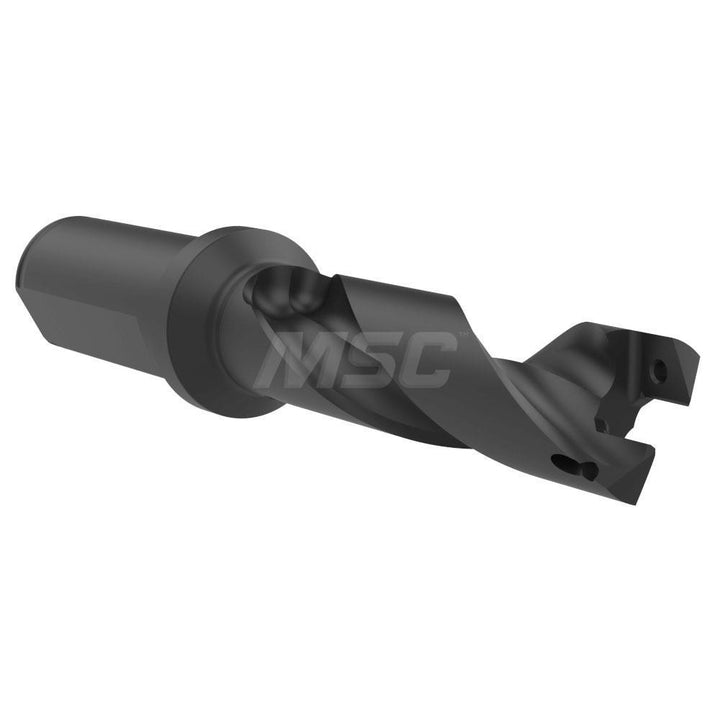

Indexable Drilling - Allied Machine and Engineering 60322H-100F
MFR# 60322H-100FSeries GEN3SYS 22
$359.33List $435.18
Save 17%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Allied Machine and Engineering 60322H-100F indexable drilling. Suited for universal. Series GEN3SYS 22.
Specifications
Body length in4-9/64
Coolant entry style code1-Axial Concentric Entry
Coolant hole thread size1/8
Coolant hole thread typeNPT
Coolant throughYes
Drill depth by diameter ratio3xD
Flute length in2-53/64
Flute typeHelical
Length typeStandard
Maximum drill depth in2-53/64
Maximum drill diameter0.9448
Minimum drill diameter0.8661
Overall length in6-27/64
Primary workpiece materialUniversal
Shank diameter in1
Shank length in2-9/32
Shank typeFlatted
Spade drill lengthStandard
Tool materialSteel
Tool performanceGeneral Purpose
