Chicago-Latrobe

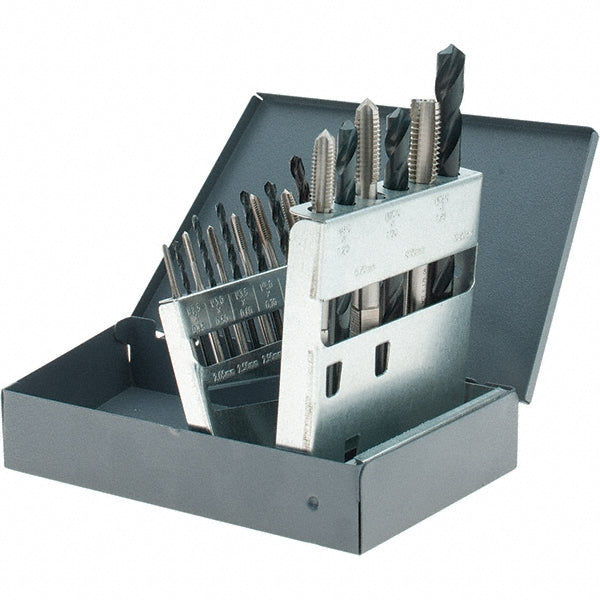

Tap & Drill Sets - Chicago-Latrobe 52541
MFR# 52541
$164.09List $215.12
Save 23%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Chicago-Latrobe 52541 tap & drill sets.
Specifications
Case typeMetal Case
ChamferPlug
Drill materialHigh Speed Steel
Drill sizes included10.20 mm; 2.05 mm; 2.50 mm; 2.90 mm; 3.30 mm; 4.20 mm; 5.00 mm; 6.70 mm; 8.50 mm
IncludesMetal Index Case
Maximum drill size (mm)10.20
Maximum tap thread size (mm)M12 x 1.75
Minimum drill size (mm)2.05
Minimum tap thread size (mm)M2.5 x 0.45
Number of drills9
Number of pieces18
Number of taps9
Tap coating finishBright
Tap materialHigh Speed Steel
Tap thread sizes includedM10 x 1.50; M12 x 1.75; M2.5 x 0.45; M3 x 0.50; M3.5 x 0.60; M4 x 0.70; M5 x 0.80; M6 x 1; M8 x 1.25
Tap typeStandard Hand
