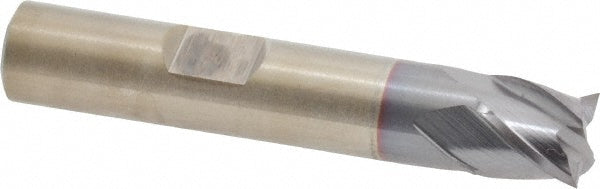

3/8" 4-Flute Powdered Metal Square End Mill, TiCN - Cleveland C31943

Cleveland

3/8" 4-Flute Powdered Metal Square End Mill, TiCN - Cleveland C31943

MFR# C31943Series PM-4

$49.01List $62.86 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter3/8
Flutes4
MaterialPowdered Metal
CoatingTiCN

Description

The Cleveland C31943 is a 3/8 4-flute Powdered Metal (M42) square end mill. 3/8 length of cut, 2-1/8 overall length. Series PM-4.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishTiCN
Cutting directionRight Hand
End mill materialPowdered Metal
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle37
Length of cut in3/8
Length of cut range0.3000 - 0.5000
Length typeStub
Material gradeM42
Mill diameter in3/8
Number of flutes4
Overall length in2-1/8
Shank diameter in3/8
Shank typeStraight-Cylindrical; Weldon Flat
Variable helixNo
Variable indexNo
