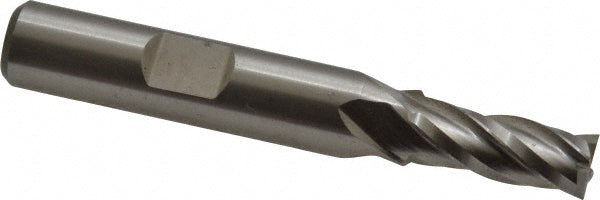

9/32" 4-Flute Cobalt Square End Mill - Cleveland C32562

Cleveland

9/32" 4-Flute Cobalt Square End Mill - Cleveland C32562

MFR# C32562Series HGC-4C

$33.29List $42.69 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter9/32
Flutes4
MaterialCobalt

Description

The Cleveland C32562 is a 9/32 4-flute Cobalt (M42) square end mill. Suited for high temperature alloy, stainless steel, steel. 3/4 length of cut, 2-1/2 overall length. Series HGC-4C.

Specifications

CentercuttingYes
ChipbreakerNo
Cutting directionRight Hand
End mill materialCobalt
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in3/4
Length of cut range0.7000 - 0.8000
Length typeRegular
Material gradeM42
Mill diameter in9/32
Number of flutes4
Overall length in2-1/2
Primary workpiece materialHigh Temperature Alloy; Stainless Steel; Steel
Shank diameter in3/8
Shank typeStraight-Cylindrical; Weldon Flat
Variable helixNo
Variable indexNo
