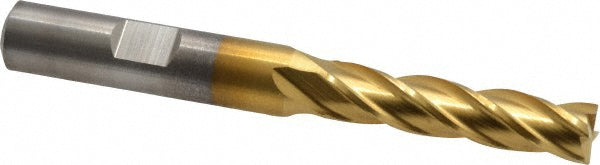

5/16" 4-Flute Cobalt Square End Mill, TiN - Cleveland C32657

Cleveland

5/16" 4-Flute Cobalt Square End Mill, TiN - Cleveland C32657

MFR# C32657Series HGC-4C

$40.22List $50.68 Save 20%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

⚡ Need it urgently? Confirm stock & ship time →

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter5/16
Flutes4
MaterialCobalt
CoatingTiN

Description

The Cleveland C32657 is a 5/16 4-flute Cobalt (M42) square end mill. Suited for high temperature alloy, stainless steel, steel. 1-3/8 length of cut, 3-1/8 overall length. Series HGC-4C.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishTiN
Cutting directionRight Hand
End mill materialCobalt
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in1-3/8
Length of cut range1.2500 - 1.5000
Length typeLong
Material gradeM42
Mill diameter in5/16
Number of flutes4
Overall length in3-1/8
Primary workpiece materialHigh Temperature Alloy; Stainless Steel; Steel
Shank diameter in3/8
Shank typeStraight-Cylindrical; Weldon Flat
Variable helixNo
Variable indexNo
