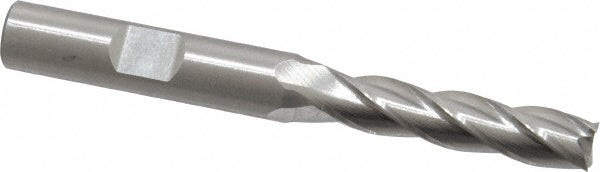

5/16" 4-Flute High Speed Steel Square End Mill - Cleveland C41328

Cleveland

5/16" 4-Flute High Speed Steel Square End Mill - Cleveland C41328

MFR# C41328Series HG-4C

$39.74List $50.08 Save 20%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

⚡ Need it urgently? Confirm stock & ship time →

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter5/16
Flutes4
MaterialHigh Speed Steel

Description

The Cleveland C41328 is a 5/16 4-flute High Speed Steel square end mill. Suited for cast iron, non-ferrous metal, steel. 1-3/8 length of cut, 3-1/8 overall length. Series HG-4C.

Specifications

CentercuttingYes
ChipbreakerNo
Cutting directionRight Hand
End mill materialHigh Speed Steel
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in1-3/8
Length of cut range1.2500 - 1.5000
Length typeRegular
Mill diameter in5/16
Number of flutes4
Overall length in3-1/8
Primary workpiece materialCast Iron; Non-Ferrous Metal; Steel
Shank diameter in3/8
Shank typeStraight-Cylindrical; Weldon Flat
Variable helixNo
Variable indexNo
