Cleveland

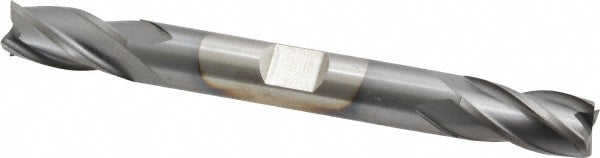

3/8" 4-Flute Cobalt Square End Mill, TiCN - Cleveland C32990

MFR# C32990Series HDC-4C

$42.76List $54.84 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter3/8

Flutes4

MaterialCobalt

CoatingTiCN

Description

The Cleveland C32990 is a 3/8 4-flute Cobalt (M42) square end mill. Suited for high temperature alloy, stainless steel, steel. 3/4 length of cut, 3-1/2 overall length. Series HDC-4C.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishTiCN

Cutting directionRight Hand

End mill materialCobalt

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle30

Length of cut in3/4

Length of cut range0.7000 - 0.8000

Length typeRegular

Material gradeM42

Mill diameter in3/8

Number of flutes4

Overall length in3-1/2

Primary workpiece materialHigh Temperature Alloy; Stainless Steel; Steel

Shank diameter in3/8

Shank typeStraight-Cylindrical; Weldon Flat

Variable helixNo

Variable indexNo
