Cleveland

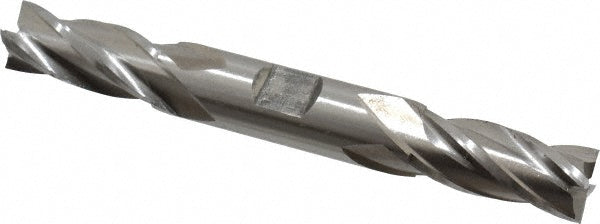

19/32" 4-Flute High Speed Steel Square End Mill - Cleveland C33049

MFR# C33049Series HD-4C

$104.37List $133.86 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter19/32

Flutes4

MaterialHigh Speed Steel

Description

The Cleveland C33049 is a 19/32 4-flute High Speed Steel square end mill. Suited for cast iron, non-ferrous metal, steel. 1-3/8 length of cut, 5 overall length. Series HD-4C.

Specifications

CentercuttingYes

ChipbreakerNo

Cutting directionRight Hand

End mill materialHigh Speed Steel

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle30

Length of cut in1-3/8

Length of cut range1.2500 - 1.5000

Length typeRegular

Mill diameter in19/32

Number of flutes4

Overall length in5

Primary workpiece materialCast Iron; Non-Ferrous Metal; Steel

Shank diameter in5/8

Shank typeStraight-Cylindrical; Weldon Flat

Variable helixNo

Variable indexNo
