Cleveland

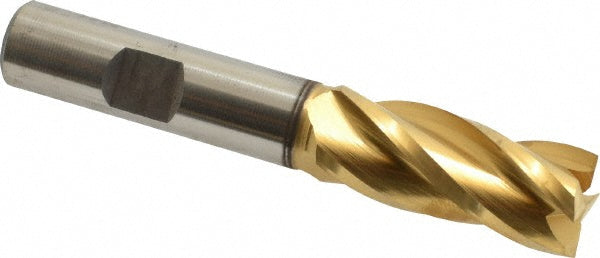

19/32" 4-Flute High Speed Steel Square End Mill, TiN - Cleveland C33210

MFR# C33210Series HG-4C

$80.17List $102.82 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter19/32

Flutes4

MaterialHigh Speed Steel

CoatingTiN

Description

The Cleveland C33210 is a 19/32 4-flute High Speed Steel square end mill. Suited for cast iron, non-ferrous metal, steel. 1-3/8 length of cut, 3-3/8 overall length. Series HG-4C.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishTiN

Cutting directionRight Hand

End mill materialHigh Speed Steel

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle30

Length of cut in1-3/8

Length of cut range1.2500 - 1.5000

Length typeRegular

Mill diameter in19/32

Number of flutes4

Overall length in3-3/8

Primary workpiece materialCast Iron; Non-Ferrous Metal; Steel

Shank diameter in1/2

Shank typeStraight-Cylindrical; Weldon Flat

Variable helixNo

Variable indexNo
