Cleveland

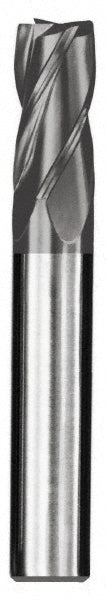

25/64" 4-Flute High Speed Steel Square End Mill, TiN - Cleveland C33076

MFR# C33076Series HD-4C

$52.05List $66.76 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter25/64

Flutes4

MaterialHigh Speed Steel

CoatingTiN

Description

The Cleveland C33076 is a 25/64 4-flute High Speed Steel square end mill. Suited for cast iron, non-ferrous metal, steel. 1 length of cut, 4-1/2 overall length. Series HD-4C.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishTiN

Cutting directionRight Hand

End mill materialHigh Speed Steel

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle30

Length of cut in1

Length of cut range1.0000 - 1.2500

Length typeRegular

Mill diameter in25/64

Number of flutes4

Overall length in4-1/2

Primary workpiece materialCast Iron; Non-Ferrous Metal; Steel

Shank diameter in1/2

Shank typeStraight-Cylindrical; Weldon Flat

Variable helixNo

Variable indexNo

Can't find your exact tool?Send us a part number — we'll cross-reference it. Dull tools?Regrinding extends tool life and saves cost.

Alternate & equivalent tools

Matched on diameter, flute count, and material. Need a specific brand or coating? Cross-reference this tool.
