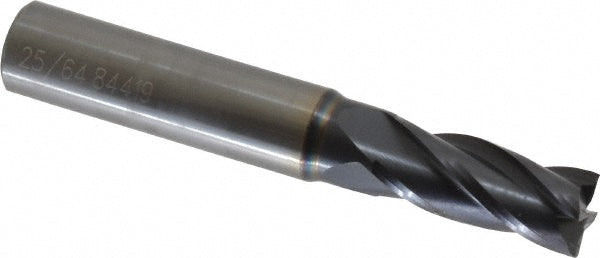

25/64" 4-Flute Solid Carbide Square End Mill, TiAlN - OSG 404-390611

OSG

25/64" 4-Flute Solid Carbide Square End Mill, TiAlN - OSG 404-390611

MFR# 404-390611Series 404

$63.48List $81.42 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter25/64
Flutes4
MaterialSolid Carbide
CoatingTiAlN

Description

The OSG 404-390611 is a 25/64 4-flute Solid Carbide (Micrograin) square end mill. 1 length of cut, 2-3/4 overall length. Series 404.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishTiAlN
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in1
Length typeRegular
Material gradeMicrograin
Mill diameter in25/64
Mill diameter tolerance+0.000/-0.001 in
Number of flutes4
Overall length in2-3/4
Shank diameter in7/16
Shank diameter tolerance+0.00000/-0.0005 in
Variable helixNo
Variable indexNo
