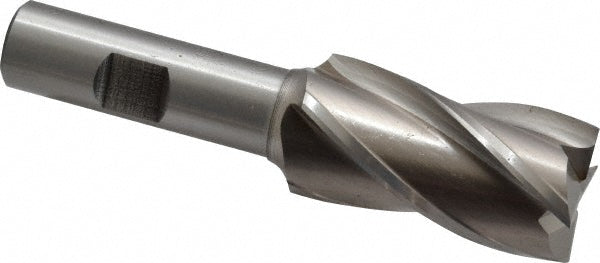

1" 4-Flute High Speed Steel Square End Mill - Cleveland C33178

MFR# C33178Series HG-4C

$142.10List $182.25 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter1

Flutes4

MaterialHigh Speed Steel

Description

The Cleveland C33178 is a 1 4-flute High Speed Steel square end mill. Suited for cast iron, non-ferrous metal, steel. 1-7/8 length of cut, 4 overall length. Series HG-4C.

Specifications

CentercuttingYes

ChipbreakerNo

Cutting directionRight Hand

End mill materialHigh Speed Steel

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle30

Length of cut in1-7/8

Length of cut range1.5000 - 2.0000

Length typeRegular

Mill diameter in1

Number of flutes4

Overall length in4

Primary workpiece materialCast Iron; Non-Ferrous Metal; Steel

Shank diameter in5/8

Shank typeStraight-Cylindrical; Weldon Flat

Variable helixNo

Variable indexNo
