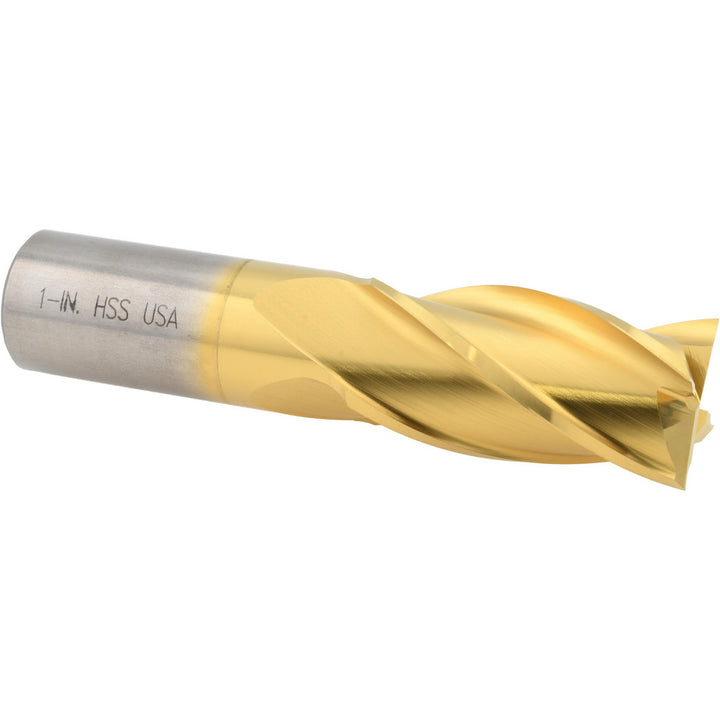

1" 4-Flute High Speed Steel Square End Mill, TiN - Cleveland C33229

Cleveland

1" 4-Flute High Speed Steel Square End Mill, TiN - Cleveland C33229

MFR# C33229Series HG-4C-TN

$136.41List $174.95 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter1
Flutes4
MaterialHigh Speed Steel
CoatingTiN

Description

The Cleveland C33229 is a 1 4-flute High Speed Steel square end mill with a TiN finish for longer tool life. Suited for cast iron, aluminum & non-ferrous, steel. 1-7/8 length of cut, 4-1/8 overall length. Series HG-4C-TN.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishTiN
Coating finish familyTiN
Coolant throughNo
Cutting directionRight Hand
End mill materialHigh Speed Steel
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in1-7/8
Length of cut range1.5000 - 2.0000
Length typeRegular
Mill diameter in1
Number of flutes4
Overall length in4-1/8
Primary workpiece materialCast Iron; Aluminum & Non-Ferrous; Steel
Shank diameter in7/8
Shank typeWeldon Flat
Single or double endSingle
System of measurementFractional Inch
Variable helixNo
Variable indexNo
