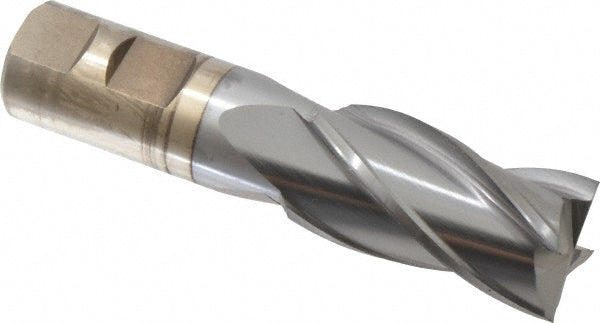

1" 4-Flute High Speed Steel Square End Mill, TiCN - Cleveland C33289

Cleveland

1" 4-Flute High Speed Steel Square End Mill, TiCN - Cleveland C33289

MFR# C33289Series HG-4C

$159.48List $204.53 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter1
Flutes4
MaterialHigh Speed Steel
CoatingTiCN

Description

The Cleveland C33289 is a 1 4-flute High Speed Steel square end mill. Suited for cast iron, non-ferrous metal, steel. 1-7/8 length of cut, 4-1/8 overall length. Series HG-4C.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishTiCN
Cutting directionRight Hand
End mill materialHigh Speed Steel
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in1-7/8
Length of cut range1.5000 - 2.0000
Length typeRegular
Mill diameter in1
Number of flutes4
Overall length in4-1/8
Primary workpiece materialCast Iron; Non-Ferrous Metal; Steel
Shank diameter in7/8
Shank typeStraight-Cylindrical; Weldon Flat
Variable helixNo
Variable indexNo
