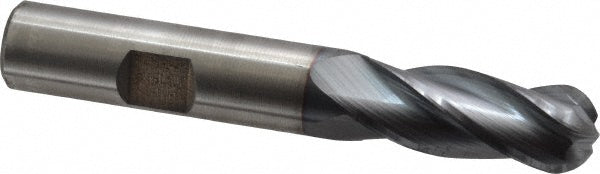

1/2" 4-Flute High Speed Steel Ball End Mill, TiCN - Cleveland C33316

Cleveland

1/2" 4-Flute High Speed Steel Ball End Mill, TiCN - Cleveland C33316

MFR# C33316Series HG-4B

$101.84List $130.61 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter1/2
Flutes4
MaterialHigh Speed Steel
CoatingTiCN

Description

The Cleveland C33316 is a 1/2 4-flute High Speed Steel ball end mill with a TiCN finish for longer tool life. Suited for cast iron, steel. 1-1/4 length of cut, 3-1/4 overall length. Series HG-4B.

Specifications

ChipbreakerNo
Coating finishTiCN
Coolant throughNo
Cutting directionRight Hand
End mill materialHigh Speed Steel
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in1-1/4
Length typeRegular
Material removal typeFinishing
Mill diameter in1/2
Number of flutes4
Overall length in3-1/4
Primary workpiece materialCast Iron; Steel
Shank diameter in1/2
Single or double endSingle
Variable helixNo
Variable indexNo
