Cleveland

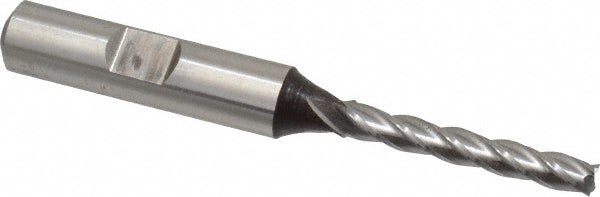

3/16" 4-Flute High Speed Steel Square End Mill - Cleveland C33371

MFR# C33371Series HG-4C

$31.85List $40.85 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter3/16

Flutes4

MaterialHigh Speed Steel

Description

The Cleveland C33371 is a 3/16 4-flute High Speed Steel square end mill. Suited for cast iron, non-ferrous metal, steel. 1-1/4 length of cut, 3-1/16 overall length. Series HG-4C.

Specifications

CentercuttingYes

ChipbreakerNo

Cutting directionRight Hand

End mill materialHigh Speed Steel

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle30

Length of cut in1-1/4

Length of cut range1.2500 - 1.5000

Length typeRegular

Mill diameter in3/16

Number of flutes4

Overall length in3-1/16

Primary workpiece materialCast Iron; Non-Ferrous Metal; Steel

Shank diameter in3/8

Shank typeStraight-Cylindrical; Weldon Flat

Variable helixNo

Variable indexNo
