Cleveland

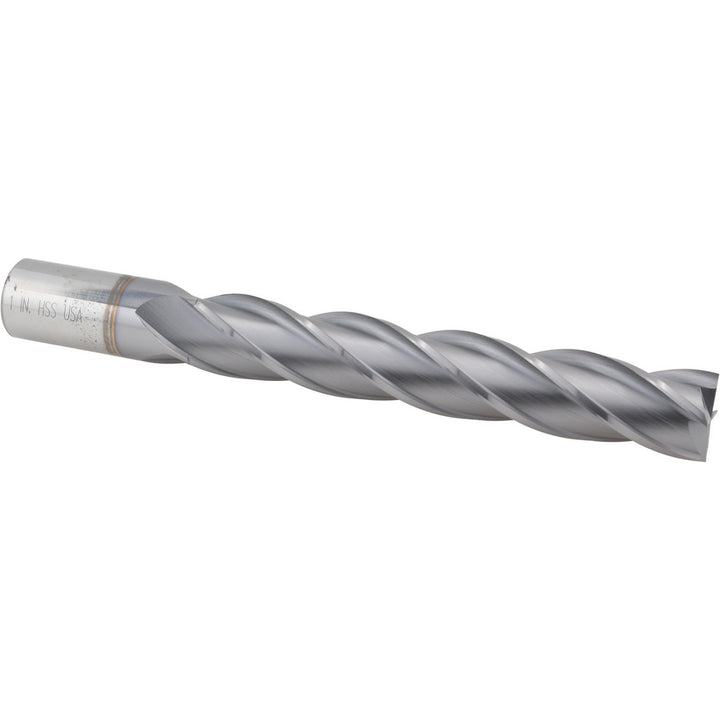

1" 4-Flute High Speed Steel Square End Mill, TiCN - Cleveland C33471
MFR# C33471Series HG-4C-TC
$266.47List $341.75
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter1
Flutes4
MaterialHigh Speed Steel
CoatingTiCN
Description
The Cleveland C33471 is a 1 4-flute High Speed Steel square end mill with a TiCN finish for longer tool life. Suited for cast iron, aluminum & non-ferrous, steel. 6 length of cut, 8-1/2 overall length. Series HG-4C-TC.
Specifications
CentercuttingYes
ChipbreakerNo
Coating finishTiCN
Coating finish familyTiCN
Coolant throughNo
Cutting directionRight Hand
End mill materialHigh Speed Steel
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in6
Length of cut range2.0000+
Length typeExtra Long
Mill diameter in1
Number of flutes4
Overall length in8-1/2
Primary workpiece materialCast Iron; Aluminum & Non-Ferrous; Steel
Shank diameter in1
Shank typeWeldon Flat
Single or double endSingle
System of measurementFractional Inch
Variable helixNo
Variable indexNo
