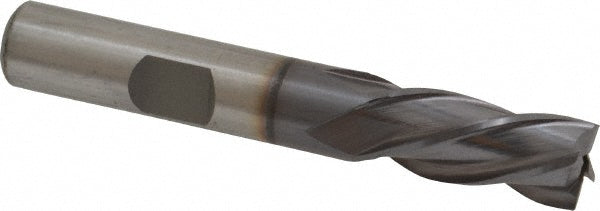

3/8" 4-Flute High Speed Steel Square End Mill, TiCN - Cleveland C33621

Cleveland

3/8" 4-Flute High Speed Steel Square End Mill, TiCN - Cleveland C33621

MFR# C33621Series HG-4LL

$80.21List $101.09 Save 20%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter3/8
Flutes4
MaterialHigh Speed Steel
CoatingTiCN

Description

The Cleveland C33621 is a 3/8 4-flute High Speed Steel square end mill with a TiCN finish for longer tool life. Suited for cast iron, non-ferrous metal, steel. 3/4 length of cut, 2-1/2 overall length. Series HG-4LL.

Specifications

CentercuttingNo
ChipbreakerNo
Coating finishTiCN
Cutting directionLeft Hand
End mill materialHigh Speed Steel
Extended reachNo
Flute directionLeft Hand
Flute typeSpiral
Helix angle30
Length of cut in3/4
Length of cut range0.7000 - 0.8000
Length typeRegular
Mill diameter in3/8
Number of flutes4
Overall length in2-1/2
Primary workpiece materialCast Iron; Non-Ferrous Metal; Steel
Shank diameter in3/8
Shank typeStraight-Cylindrical; Weldon Flat
Variable helixNo
Variable indexNo
