1/4" 2-Flute High Speed Steel Square End Mill, TiN - Cleveland C33656

Cleveland

1/4" 2-Flute High Speed Steel Square End Mill, TiN - Cleveland C33656

MFR# C33656Series HD-2

$41.29List $52.96 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter1/4
Flutes2
MaterialHigh Speed Steel
CoatingTiN

Description

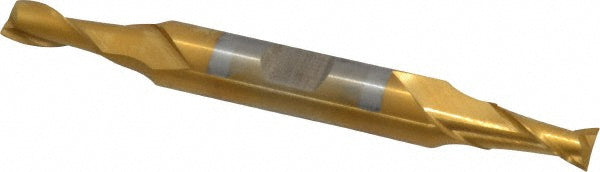

The Cleveland C33656 is a 1/4 2-flute High Speed Steel square end mill. Suited for cast iron, non-ferrous metal, steel. 1/2 length of cut, 3-3/8 overall length. Series HD-2.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishTiN
Cutting directionRight Hand
End mill materialHigh Speed Steel
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in1/2
Length of cut range0.5000 - 0.6000
Length typeRegular
Mill diameter in1/4
Number of flutes2
Overall length in3-3/8
Primary workpiece materialCast Iron; Non-Ferrous Metal; Steel
Shank diameter in3/8
Shank typeStraight-Cylindrical; Weldon Flat
Variable helixNo
Variable indexNo
