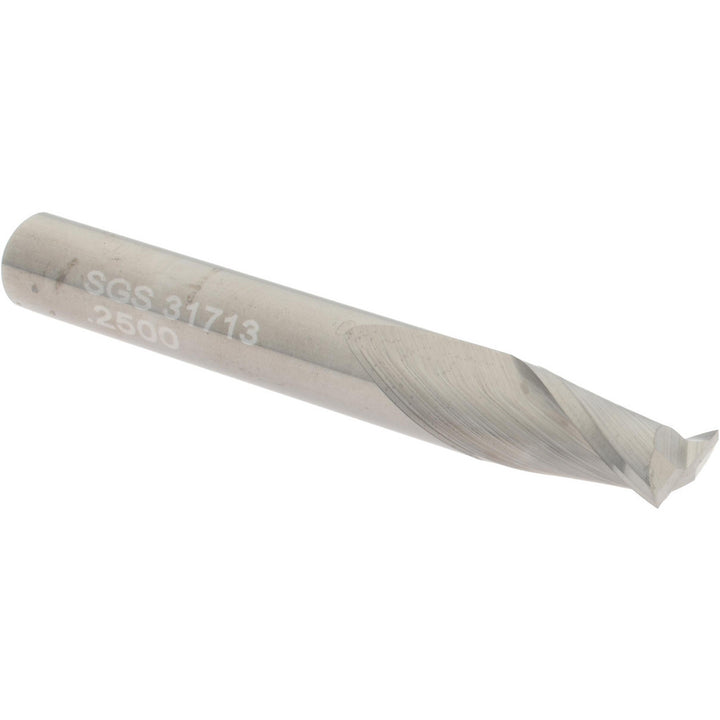

1/4" 2-Flute Solid Carbide Square End Mill - SGS 31713

SGS

1/4" 2-Flute Solid Carbide Square End Mill - SGS 31713

MFR# 31713Series 17

$20.11List $25.79 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter1/4
Flutes2
MaterialSolid Carbide

Description

The SGS 31713 is a 1/4 2-flute Solid Carbide (Micrograin) square end mill. 1/2 length of cut, 2 overall length. Series 17.

Specifications

CentercuttingYes
ChipbreakerNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in1/2
Length of cut range0.5000 - 0.6000
Length typeStub
Material gradeMicrograin
Mill diameter in1/4
Mill diameter tolerance+0.000/-0.002 in
Number of flutes2
Overall length in2
Shank diameter in1/4
Shank diameter tolerance+0.00000/-0.00035 in
Shank typeStraight-Cylindrical
Variable helixNo
Variable indexNo
