Cleveland

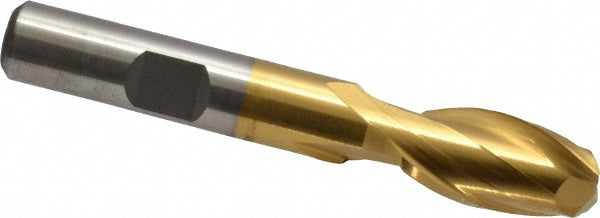

7/16" 2-Flute High Speed Steel Square End Mill, TiN - Cleveland C33768

MFR# C33768Series HG-2

$40.69List $52.19 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter7/16

Flutes2

MaterialHigh Speed Steel

CoatingTiN

Description

The Cleveland C33768 is a 7/16 2-flute High Speed Steel square end mill with a Titanium Nitride finish for longer tool life. Suited for cast iron, non-ferrous metal, steel. 13/16 length of cut, 2-11/16 overall length. Series HG-2.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishTiN

Cutting directionRight Hand

End mill materialHigh Speed Steel

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle30

Length of cut in13/16

Length of cut range0.8000 - 1.0000

Length typeRegular

Mill diameter in7/16

Number of flutes2

Overall length in2-11/16

Primary workpiece materialCast Iron; Non-Ferrous Metal; Steel

Shank diameter in3/8

Shank typeStraight-Cylindrical; Weldon Flat

Variable helixNo

Variable indexNo
