Cleveland

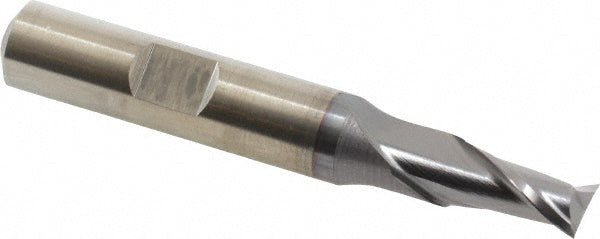

9/32" 2-Flute High Speed Steel Square End Mill, TiCN - Cleveland C33812

MFR# C33812Series HG-2

$35.57List $45.62 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter9/32

Flutes2

MaterialHigh Speed Steel

CoatingTiCN

Description

The Cleveland C33812 is a 9/32 2-flute High Speed Steel square end mill. Suited for cast iron, non-ferrous metal, steel. 9/16 length of cut, 2-1/2 overall length. Series HG-2.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishTiCN

Cutting directionRight Hand

End mill materialHigh Speed Steel

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle30

Length of cut in9/16

Length of cut range0.5000 - 0.6000

Length typeRegular

Mill diameter in9/32

Number of flutes2

Overall length in2-1/2

Primary workpiece materialCast Iron; Non-Ferrous Metal; Steel

Shank diameter in3/8

Shank typeStraight-Cylindrical; Weldon Flat

Variable helixNo

Variable indexNo
