Cleveland

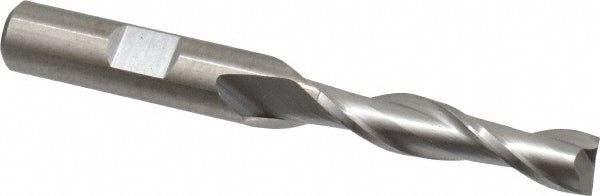

5/16" 2-Flute High Speed Steel Square End Mill - Cleveland C39068

MFR# C39068Series HG-2

$41.03List $52.63 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter5/16

Flutes2

MaterialHigh Speed Steel

Description

The Cleveland C39068 is a 5/16 2-flute High Speed Steel square end mill. Suited for cast iron, non-ferrous metal, steel. 1-3/8 length of cut, 3-1/8 overall length. Series HG-2.

Specifications

CentercuttingYes

ChipbreakerNo

Cutting directionRight Hand

End mill materialHigh Speed Steel

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle30

Length of cut in1-3/8

Length of cut range1.2500 - 1.5000

Length typeLong

Mill diameter in5/16

Number of flutes2

Overall length in3-1/8

Primary workpiece materialCast Iron; Non-Ferrous Metal; Steel

Shank diameter in3/8

Shank typeStraight-Cylindrical; Weldon Flat

Variable helixNo

Variable indexNo
