5/16" 2-Flute Solid Carbide Square End Mill - SGS 32036

SGS

5/16" 2-Flute Solid Carbide Square End Mill - SGS 32036

MFR# 32036Series 44

$113.05List $144.99 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter5/16
Flutes2
MaterialSolid Carbide

Description

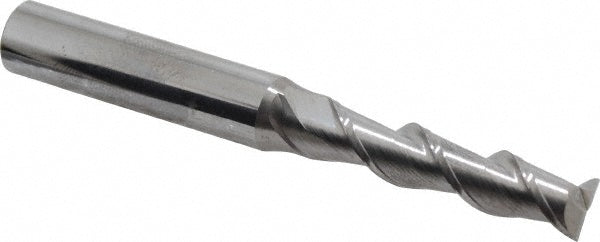

The SGS 32036 is a 5/16 2-flute Solid Carbide square end mill. 1-3/8 length of cut, 3-1/8 overall length. Series 44.

Specifications

CentercuttingYes
ChipbreakerNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle45
Length of cut in1-3/8
Mill diameter in5/16
Mill diameter tolerance+0.00000/-0.00035 in
Number of flutes2
Overall length in3-1/8
Shank diameter in3/8
Shank diameter tolerance+0.00000/-0.00035 in
Variable helixNo
Variable indexNo
