Cleveland

1/4" 3-Flute High Speed Steel Square End Mill, TiN - Cleveland C39755

MFR# C39755Series HG-3

$62.24List $79.83 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter1/4

Flutes3

MaterialHigh Speed Steel

CoatingTiN

Description

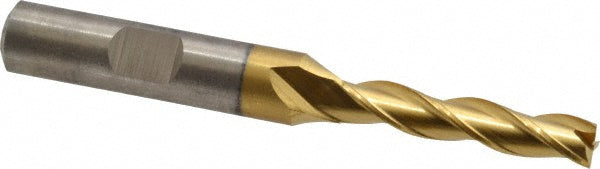

The Cleveland C39755 is a 1/4 3-flute High Speed Steel square end mill. Suited for cast iron, non-ferrous metal, steel. 1-1/4 length of cut, 3-1/16 overall length. Series HG-3.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishTiN

Cutting directionRight Hand

End mill materialHigh Speed Steel

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle30

Length of cut in1-1/4

Length of cut range1.2500 - 1.5000

Length typeLong

Mill diameter in1/4

Number of flutes3

Overall length in3-1/16

Primary workpiece materialCast Iron; Non-Ferrous Metal; Steel

Shank diameter in3/8

Shank typeStraight-Cylindrical; Weldon Flat

Variable helixNo

Variable indexNo
