Cleveland

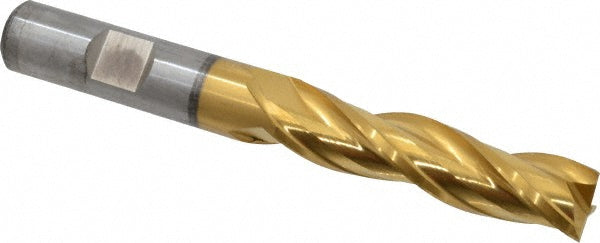

1/2" 3-Flute High Speed Steel Square End Mill, TiN - Cleveland C39763

MFR# C39763Series HG-3

$75.19List $96.43 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter1/2

Flutes3

MaterialHigh Speed Steel

CoatingTiN

Description

The Cleveland C39763 is a 1/2 3-flute High Speed Steel square end mill. Suited for cast iron, non-ferrous metal, steel. 2 length of cut, 4 overall length. Series HG-3.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishTiN

Cutting directionRight Hand

End mill materialHigh Speed Steel

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle30

Length of cut in2

Length of cut range2.0000+

Length typeLong

Mill diameter in1/2

Number of flutes3

Overall length in4

Primary workpiece materialCast Iron; Non-Ferrous Metal; Steel

Shank diameter in1/2

Shank typeStraight-Cylindrical; Weldon Flat

Variable helixNo

Variable indexNo

Can't find your exact tool?Send us a part number — we'll cross-reference it. Dull tools?Regrinding extends tool life and saves cost.

Alternate & equivalent tools

Matched on diameter, flute count, and material. Need a specific brand or coating? Cross-reference this tool.
