Cleveland

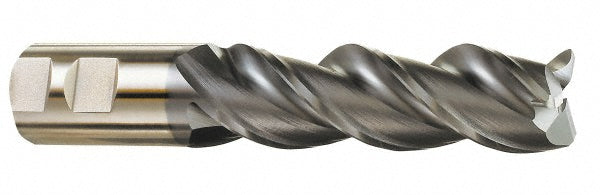

1" 3-Flute Powdered Metal Corner Radius End Mill, TiCN - Cleveland C40358

MFR# C40358Series PM-539R

$243.23List $311.95 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter1

Flutes3

MaterialPowdered Metal

CoatingTiCN

Description

The Cleveland C40358 is a 1 3-flute Powdered Metal corner radius end mill with a TiCN finish for longer tool life. Suited for non-ferrous metal. 2 length of cut, 4-1/2 overall length. Series PM-539R.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishTiCN

Coolant throughNo

Corner radius0.0900

Cutting directionRight Hand

End mill materialPowdered Metal

End typeCorner Radius

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

For use withToolholder

Helix styleHigh

Length of cut in2

Length typeShort

Material applicationNon-Ferrous Metal

Material removal typeFinishing

Mill diameter in1

Number of flutes3

Overall length in4-1/2

PitchCoarse

Primary workpiece materialNon-Ferrous Metal

Shank diameter in1

Shank typeWeldon Flat

Single or double endSingle

Variable helixNo

Variable indexNo
