Iscar

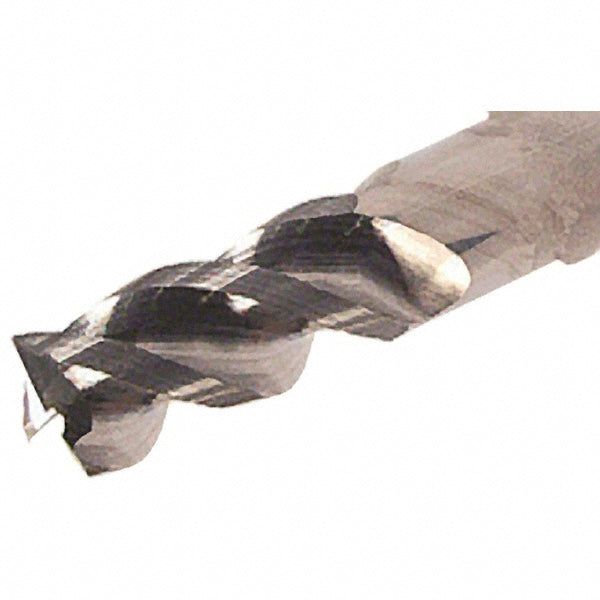

1" 3-Flute Solid Carbide Corner Radius End Mill - Iscar 5622950

MFR# 5622950Series ECAI-H3-CF

$1,022.29List $1,311.13 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter1

Flutes3

MaterialSolid Carbide

CoatingUncoated

Description

The Iscar 5622950 is a 1 3-flute Solid Carbide (Fine Grain) corner radius end mill. Suited for non-ferrous metal. 1-1/2 length of cut, 7.2000 overall length. Series ECAI-H3-CF.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishUncoated

Coolant throughNo

Corner radius0.0900

Cutting directionRight Hand

End mill materialSolid Carbide

End typeCorner Radius

Extended reachYes

Flute directionRight Hand

Flute typeHelical

For use withToolholder

Helix styleVariable

Length of cut in1-1/2

Length typeShort

Material applicationNon-Ferrous Metal

Material gradeFine Grain

Material removal typeRoughing & Finishing

Mill diameter in1

Mill diameter toleranceh6

Number of flutes3

Overall length7.2000

PitchCoarse

Primary workpiece materialNon-Ferrous Metal

Reach length in5

Shank diameter in1

Shank diameter toleranceh6

Shank typeStraight-Cylindrical

Single or double endSingle

Variable helixYes

Variable indexNo
