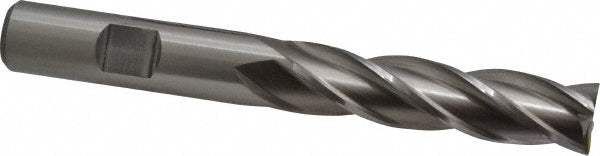

1/2" 4-Flute High Speed Steel Square End Mill - Cleveland C41335

Cleveland

1/2" 4-Flute High Speed Steel Square End Mill - Cleveland C41335

MFR# C41335Series HG-4C

$52.16List $66.90 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter1/2
Flutes4
MaterialHigh Speed Steel

Description

The Cleveland C41335 is a 1/2 4-flute High Speed Steel square end mill. Suited for cast iron, non-ferrous metal, steel. 2 length of cut, 4 overall length. Series HG-4C.

Specifications

CentercuttingYes
ChipbreakerNo
Cutting directionRight Hand
End mill materialHigh Speed Steel
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in2
Length of cut range2.0000+
Length typeRegular
Mill diameter in1/2
Number of flutes4
Overall length in4
Primary workpiece materialCast Iron; Non-Ferrous Metal; Steel
Shank diameter in1/2
Shank typeStraight-Cylindrical; Weldon Flat
Variable helixNo
Variable indexNo
Can't find your exact tool?Send us a part number — we'll cross-reference it. Dull tools?Regrinding extends tool life and saves cost.
