1/2" 4-Flute High Speed Steel Square End Mill - Cleveland C41390

Cleveland

1/2" 4-Flute High Speed Steel Square End Mill - Cleveland C41390

MFR# C41390Series HG-4C

$63.57List $81.53 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter1/2
Flutes4
MaterialHigh Speed Steel

Description

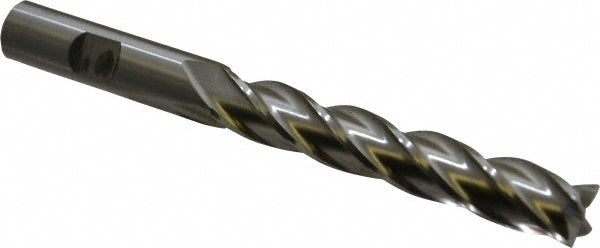

The Cleveland C41390 is a 1/2 4-flute High Speed Steel square end mill. Suited for cast iron, non-ferrous metal, steel. 2.0000 length of cut, 5 overall length. Series HG-4C.

Specifications

CentercuttingYes
ChipbreakerNo
Cutting directionRight Hand
End mill materialHigh Speed Steel
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut2.0000
Length of cut range2.0000+
Length typeExtra Long
Mill diameter in1/2
Number of flutes4
Overall length in5
Primary workpiece materialCast Iron; Non-Ferrous Metal; Steel
Shank diameter in1/2
Shank typeStraight-Cylindrical; Weldon Flat
Variable helixNo
Variable indexNo
