Cleveland

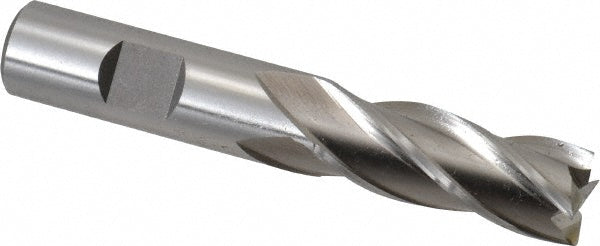

5/8" 4-Flute Cobalt Square End Mill - Cleveland C42703

MFR# C42703Series HGC-4C

$72.30List $92.73 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter5/8

Flutes4

MaterialCobalt

Description

The Cleveland C42703 is a 5/8 4-flute Cobalt (M42) square end mill. Suited for high temperature alloy, stainless steel, steel. 1-5/8 length of cut, 3-3/4 overall length. Series HGC-4C.

Specifications

CentercuttingYes

ChipbreakerNo

Cutting directionRight Hand

End mill materialCobalt

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle30

Length of cut in1-5/8

Length of cut range1.5000 - 2.0000

Length typeRegular

Material gradeM42

Mill diameter in5/8

Number of flutes4

Overall length in3-3/4

Primary workpiece materialHigh Temperature Alloy; Stainless Steel; Steel

Shank diameter in5/8

Shank typeStraight-Cylindrical; Weldon Flat

Variable helixNo

Variable indexNo

Can't find your exact tool?Send us a part number — we'll cross-reference it. Dull tools?Regrinding extends tool life and saves cost.

Alternate & equivalent tools

Matched on diameter, flute count, and material. Need a specific brand or coating? Cross-reference this tool.
