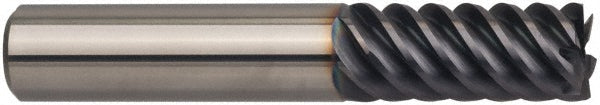

1/2" 6-Flute Solid Carbide Corner Radius End Mill, FIREX - Guhring 9030910127070

MFR# 9030910127070Series 3091

$173.96List $223.12 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter1/2

Flutes6

MaterialSolid Carbide

CoatingFIREX

Description

The Guhring 9030910127070 is a 1/2 6-flute Solid Carbide corner radius end mill with a FIREX finish for longer tool life. Suited for steel, stainless steel, cast iron, superalloys & titanium. 1 length of cut, 3 overall length. Series 3091.

Specifications

CentercuttingNo

ChipbreakerNo

Coating finishFIREX

Coolant throughNo

Corner radius0.0900

Corner radius tolerance-0.02 to 0.02 in

Cutting directionRight Hand

End mill materialSolid Carbide

End typeCorner Radius

Extended reachNo

Flute directionRight Hand

Flute typeHelical

For use withEnd Mill Holders

Helix styleHigh

Length of cut in1

Length typeStandard

Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Non-Ferrous Metal; Other Non-Ferrous Metal; Hard Material

Material removal typeFinishing

Mill diameter in1/2

Mill diameter toleranceh10

Number of flutes6

Overall length in3

PitchClose

Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium

Secondary workpiece materialNon-Ferrous Metal; Hard Material

Shank diameter in1/2

Shank diameter toleranceh6

Shank typeStraight-Cylindrical

Single or double endSingle

Variable helixNo

Variable indexNo
