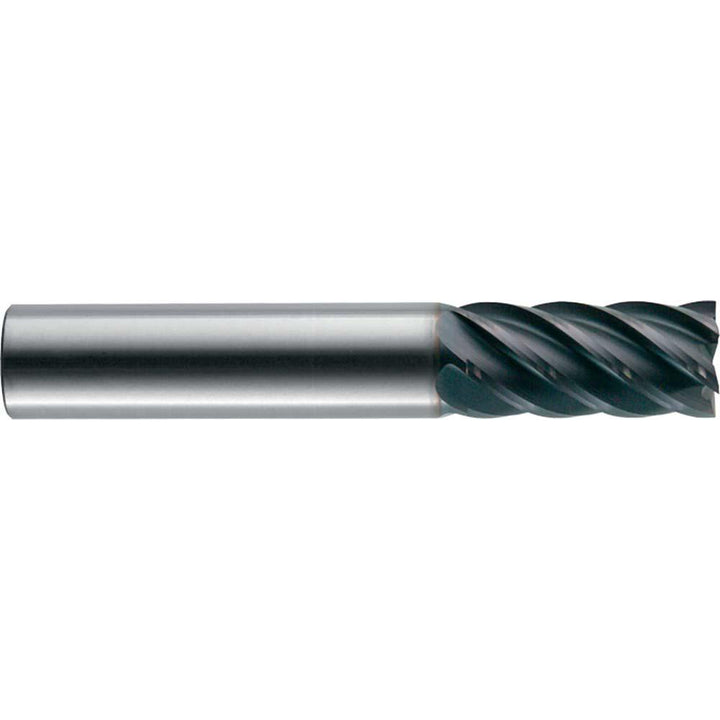

1/2" 6-Flute Solid Carbide Corner Radius End Mill, AlTiN - RobbJack ST-646-16-A

MFR# ST-646-16-ASeries ST

$146.58List $160.15 Save 8%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter1/2

Flutes6

MaterialSolid Carbide

CoatingAlTiN

Description

The RobbJack ST-646-16-A is a 1/2 6-flute Solid Carbide corner radius end mill with a AlTiN finish for longer tool life. Suited for steel, stainless steel, cast iron, superalloys & titanium. 1 length of cut, 3 overall length. Series ST.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishAlTiN

Coolant throughNo

Corner radius0.0060

Cutting directionRight Hand

End mill materialSolid Carbide

End typeCorner Radius

Extended reachNo

Flute directionRight Hand

Flute typeHelical

For use withToolholder

Helix styleHigh

Length of cut in1

Length typeStandard

Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium

Mill diameter in1/2

Mill diameter tolerance0.0010 to 0.0020 in

Number of flutes6

Overall length in3

Overall length tolerance-0.0600 to 0.0600 in

PitchClose

Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium

Shank diameter in1/2

Shank diameter tolerance0.0001 to 0.0002 in

Shank typeStraight-Cylindrical

Single or double endSingle

Variable helixYes

Variable indexYes
