Guhring

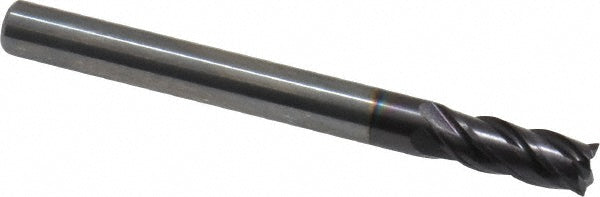

3/16" 4-Flute Solid Carbide Corner Radius & Corner Chamfer End Mill, FIREX - Guhring 9031130047600
MFR# 9031130047600Series 3113
$25.41List $32.03
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter3/16
Flutes4
MaterialSolid Carbide
CoatingFIREX
Description
The Guhring 9031130047600 is a 3/16 4-flute Solid Carbide (Proprietary) corner radius & corner chamfer end mill with a FIREX finish for longer tool life. Suited for cast iron, steel. 3/8 length of cut, 2 overall length. Series 3113.
Specifications
CentercuttingYes
ChipbreakerNo
Coating finishFIREX
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle35; 38
Length of cut in3/8
Length typeStub
Material gradeProprietary
Mill diameter in3/16
Mill diameter toleranceh10
Number of flutes4
Overall length in2
Primary workpiece materialCast Iron; Steel
Secondary workpiece materialHard Material; Stainless Steel
Shank diameter in3/16
Shank diameter toleranceh6
Shank typeStraight-Cylindrical
Single or double endSingle
Variable helixYes
Variable indexNo
