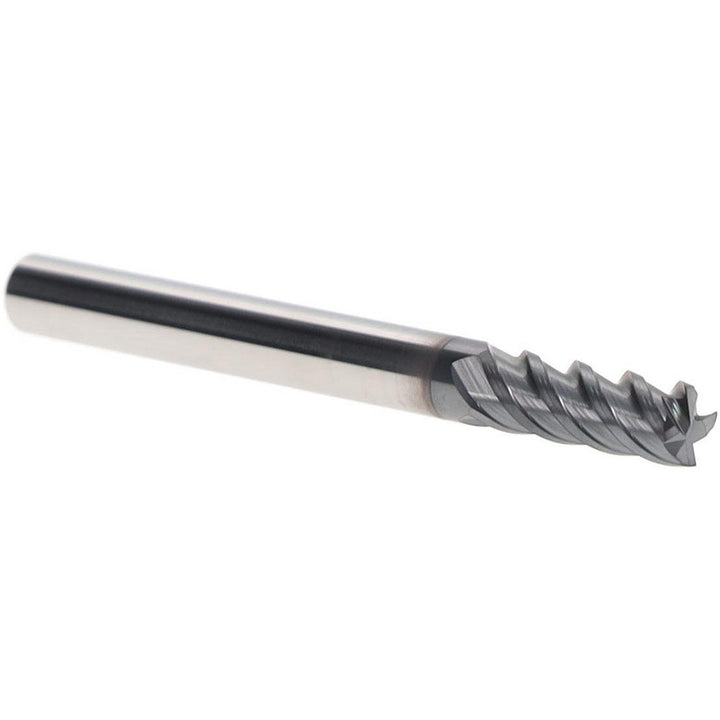

3/16" 4-Flute Solid Carbide Square End Mill, TiAlN - Iscar 5620951

Iscar

3/16" 4-Flute Solid Carbide Square End Mill, TiAlN - Iscar 5620951

MFR# 5620951

$45.83List $58.70 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter3/16
Flutes4
MaterialSolid Carbide
CoatingTiAlN

Description

The Iscar 5620951 is a 3/16 4-flute Solid Carbide (IC900) square end mill. 1/2 length of cut, 2 overall length.

Specifications

CentercuttingYes
Coating finishTiAlN
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle45
Length of cut in1/2
Length of cut range0.5000 - 0.6000
Length typeRegular
Material gradeIC900
Mill diameter in3/16
Number of flutes4
Overall length in2
Reach length0.5000
Shank diameter in3/16
Shank typeStraight-Cylindrical
Variable helixNo
Variable indexNo
