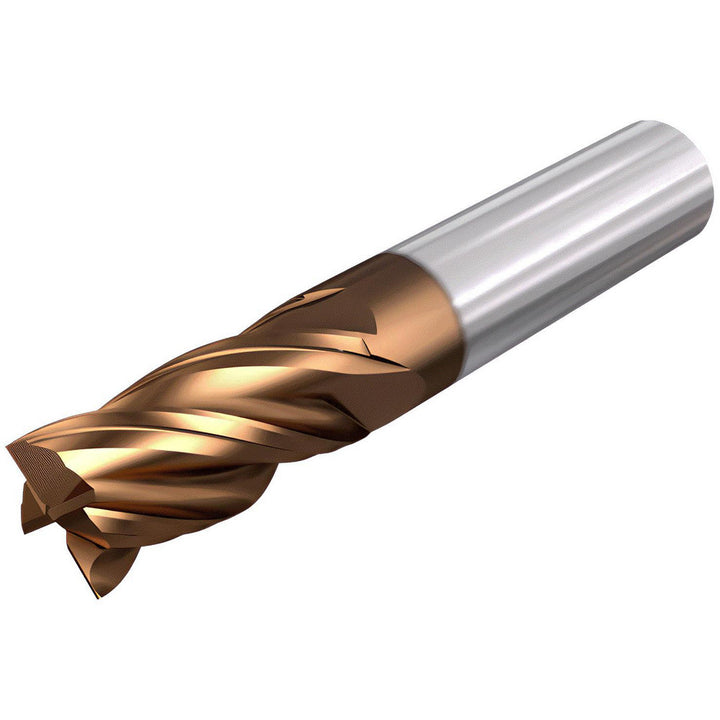

3/16" 4-Flute Solid Carbide Corner Radius End Mill, AlTiCrSiN - Iscar 3398003

Iscar

3/16" 4-Flute Solid Carbide Corner Radius End Mill, AlTiCrSiN - Iscar 3398003

MFR# 3398003Cat# ECI-4 187-625C015VF2Series ECI-4-VF

$46.85List $55.20 Save 15%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter3/16
Flutes4
MaterialSolid Carbide
CoatingAlTiCrSiN

Description

The Iscar 3398003 is a 3/16 4-flute Solid Carbide (Submicron) corner radius end mill with a AlTiCrSiN finish for longer tool life. Suited for steel, stainless steel, cast iron, superalloys & titanium, hard material. 5/8 length of cut, 2 overall length. Series ECI-4-VF.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishAlTiCrSiN
Coolant throughNo
Corner radius0.0150
Cutting directionRight Hand
End mill materialSolid Carbide
End typeCorner Radius
Extended reachYes
Flute directionRight Hand
Flute typeSpiral
For use withToolholder
Length of cut in5/8
Length typeLong
Manufacturers catalog numberECI-4 187-625C015VF2
Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
Material gradeSubmicron
Material removal typeRoughing & Finishing
Mill diameter in3/16
Number of flutes4
Overall length in2
PitchNormal
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
Reach length in5/8
Shank diameter in3/16
Shank diameter toleranceh6
Shank typeStraight-Cylindrical
Single or double endSingle
Variable helixNo
Variable indexYes
