Guhring

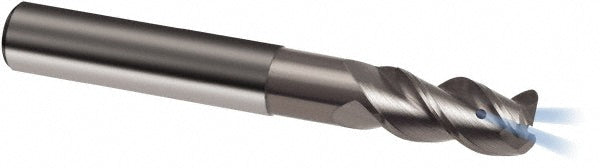

5/16" 3-Flute Solid Carbide Corner Radius & Corner Chamfer End Mill - Guhring 9031770079400

MFR# 9031770079400Series 3177

$71.80List $92.08 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter5/16

Flutes3

MaterialSolid Carbide

CoatingBright/Uncoated

Description

The Guhring 9031770079400 is a 5/16 3-flute Solid Carbide (Proprietary) corner radius & corner chamfer end mill. 7/16 length of cut, 3 overall length. Series 3177.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishBright/Uncoated

Coolant throughNo

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle45

Length of cut in7/16

Length typeLong

Material gradeProprietary

Mill diameter in5/16

Mill diameter toleranceh10

Number of flutes3

Overall length in3

Reach length1.5000

Shank diameter in5/16

Shank diameter toleranceh6

Shank typeStraight-Cylindrical

Single or double endSingle

Variable helixNo

Variable indexNo
